PingLive Sonar
- A few left in stock!
Description
Overview

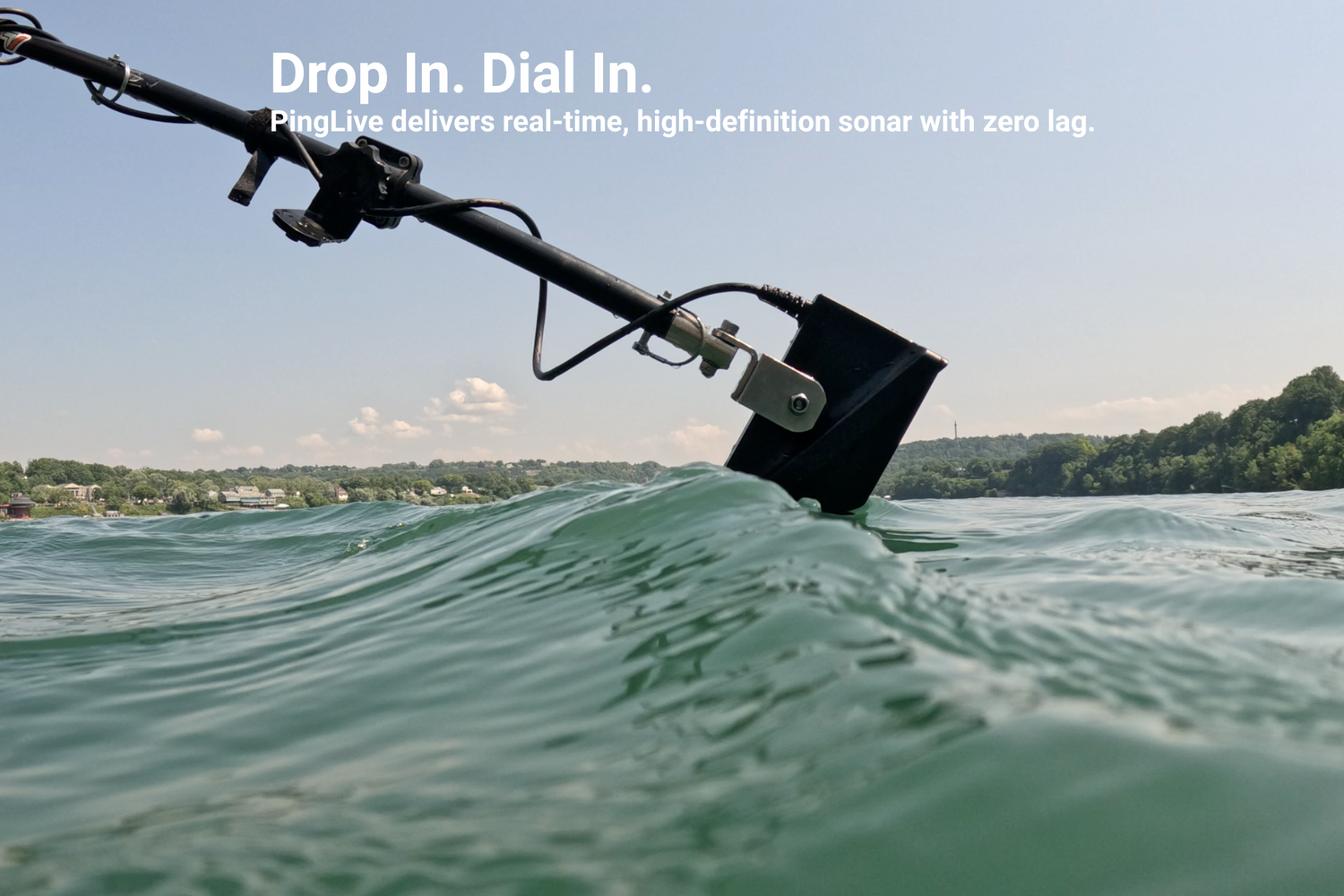

PingLive Sonar is an innovative wireless LiveSonar system that uses your iPhone or iPad as the display via USB-C or Wi-Fi connection. The transducer unit features an integrated processor, eliminating the need for a separate black box and reducing number of wires by 50% compared to traditional LiveSonar systems. With the included Wi-Fi Router or USB-C Brick, the transducer transmits sonar data to your screen, delivering sharp, real-time underwater visuals with minimal setup.
PLUG & PLAY
- View and control live image with iOS & iPadOS devices (iPhone & iPad)
- Connect to your iPad or iPhone via WiFi or USB-C, open the APP — it's that easy!
Viewing modes
- Panoramic View scan large areas to easily spot structures and fish
- Down View designed to see the activity beneath your boat with a 135-degreeview or directly beneath an ice hole

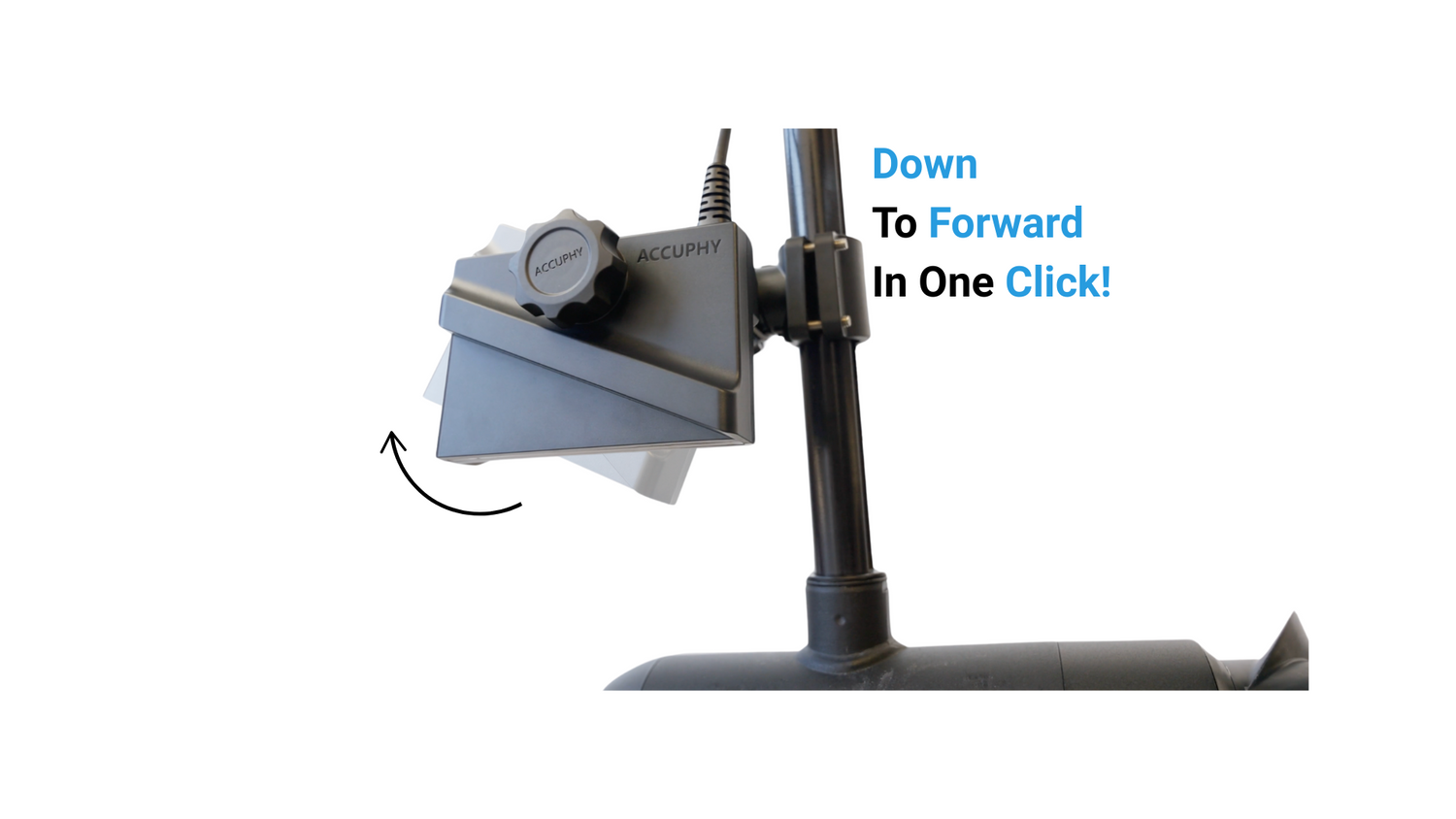

- Forward View to cover various fishing scenarios
Innovative Design
- Built-In Processor - No more bulky black box needed! Featuring an integrated processor within the sonar unit.
-

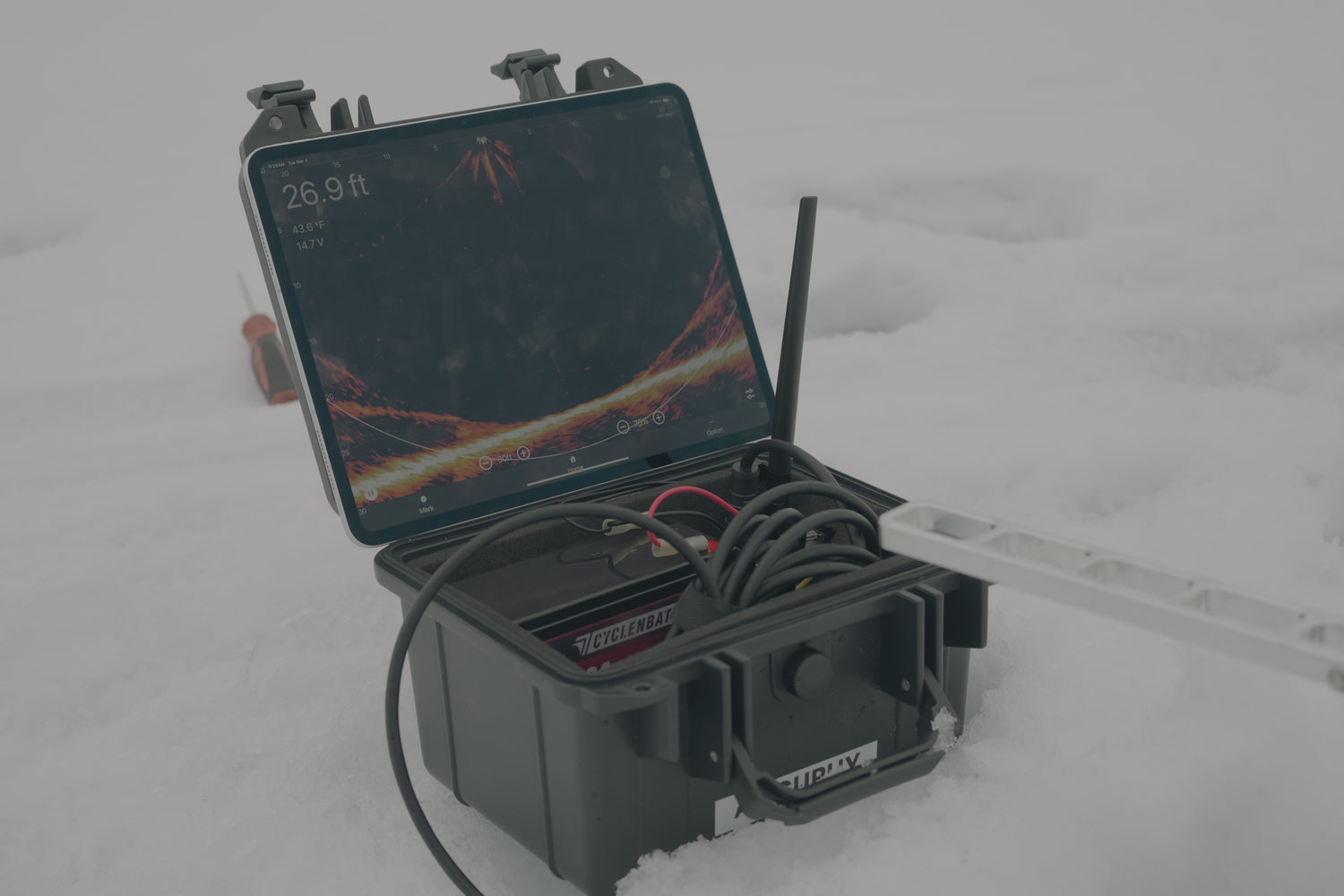

Reinforced cable - 20FT durable and lightweight sonar cable (260g), built for long-term reliability—perfect for boats, docks, and ice fishing.
Compatible iPad/iPhone Models
Wi-Fi Router Compatibility
| Device | Model | Year Released | Port Type |
|---|---|---|---|
| iPad Pro | 11-inch, 12.9-inch | 2018 and later | Wi-Fi |
| iPad Air | 3rd Gen and later | 2019 and later | Wi-Fi |
| iPad | 8th Gen and later | 2020 and later | Wi-Fi |
| iPad Mini | 5th Gen and later | 2019 and later | Wi-Fi |
| iPhone | iPhone 11 series and later | 2019 and later | Wi-Fi |
USB-C Brick Compatibility
| Device | Model | Year Released | Port Type |
|---|---|---|---|
| iPad Pro | 11-inch, 12.9-inch | 2018 and later | USB-C |
| iPad Air | 4th Gen and later | 2020 and later | USB-C |
| iPad | 10th Gen and later | 2022 and later | USB-C |
| iPad Mini | 6th Gen | 2021 and later | USB-C |
| iPhone | iPhone 15 series | 2023 and later | USB-C |
Product Specifications
Transducer Specifications
Weight: 1080g (with cable)
Brick Specifications
Dimensions: 8.5 x 7.5 x 3.5 cm
Weight: 0.2 kg
Temperature Range: -20°C to 40°C
Power Input: 12-18 VDC, 6A max
Power Regulator: Regulated DC output to sonar unit
USB-C Host Interface
Ethernet Adapter: Built-in 100/1000Mbps Ethernet adapter
Wi-Fi Router One Specifications
Dimensions: 8.5 x 7.5 x 3.5 cm
Weight: 0.2 kg
Temperature Range: -20°C to 40°C
Transducer Ports: 1
Power Input: 11-24 VDC
Power Usage: 3-6W
Frequency: 2.4/5.8GHz
Wi-Fi Modes: IEEE802.11a/b/g/n/ac
Wi-Fi Effective Range: 100 ft*
*A power source capable of supplying at least 6A output is required for optimal performance.
What's in the Box?
- PingLive transducer
- Wi-Fi Router/ USB-C Brick
- Panoramic mount
- Barrel mount
- Shaft mount
PingLive Sonar
Router Vs. Brick

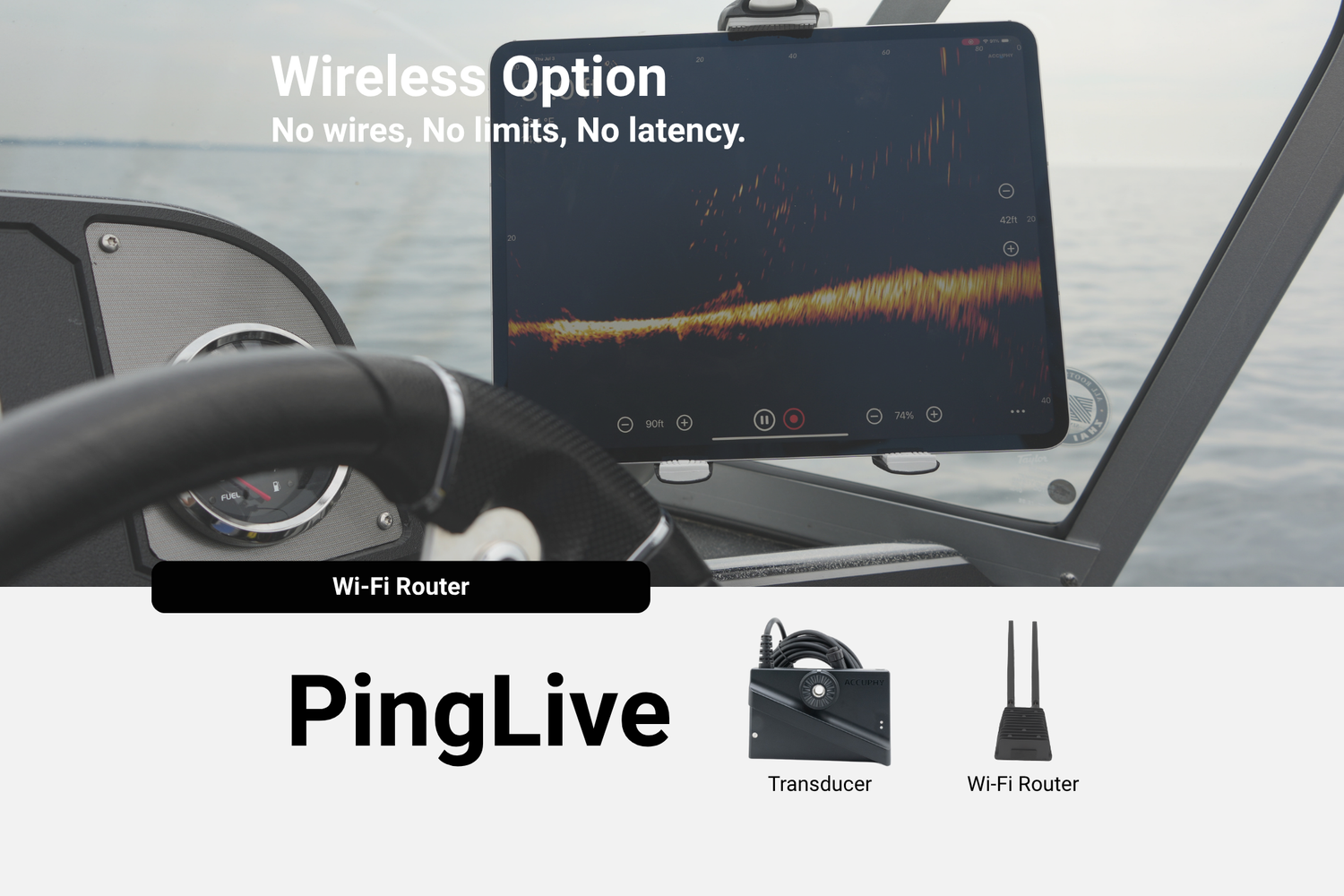

The Router enables wireless connection to your iOS devices with a theoretical range of up to 100ft, providing seamless data transmission.

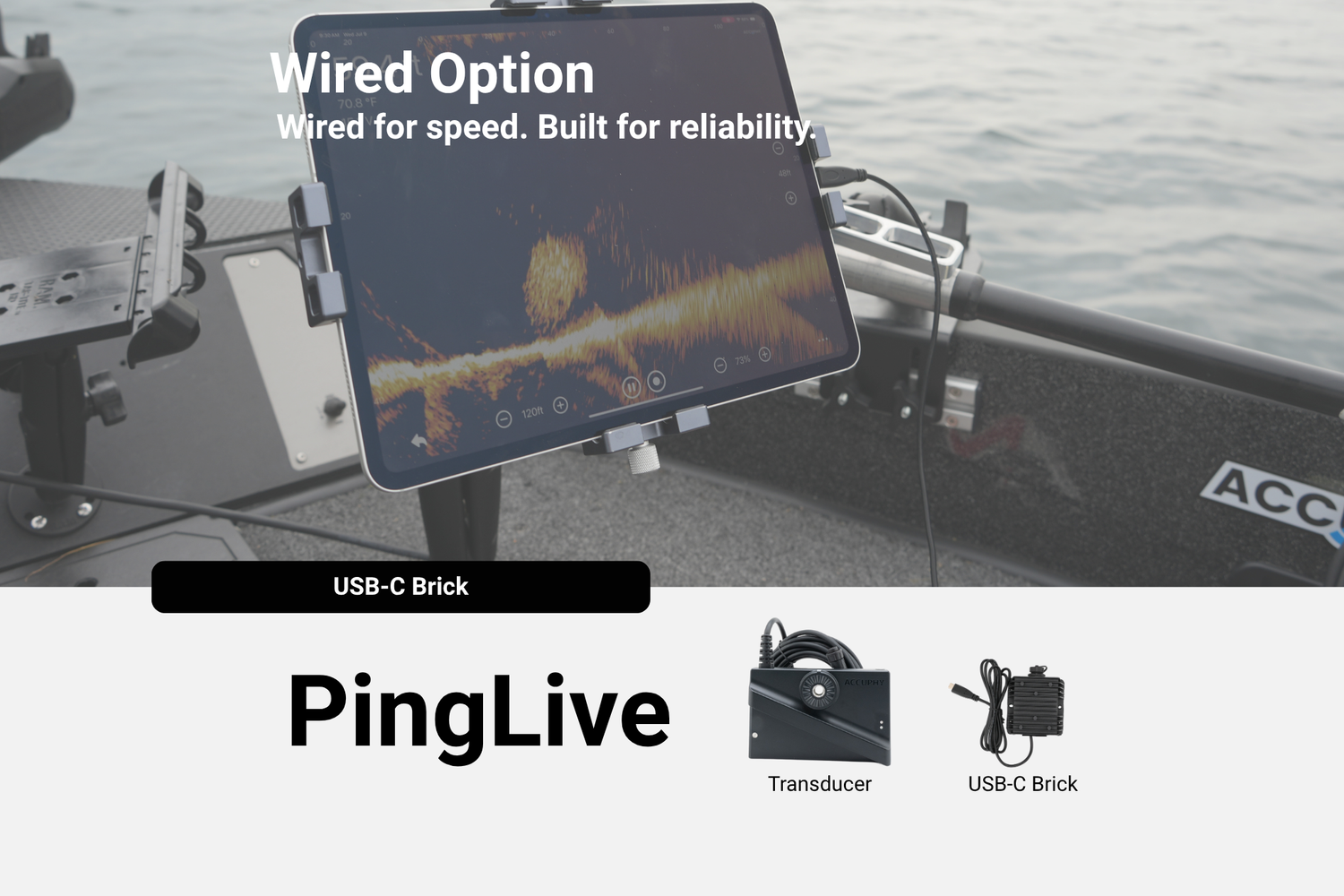

The Brick includes a USB-C cable for direct screen connection, offering a wired display option.
Both the Router and Brick function as voltage amplifiers and stabilizers, delivering a consistent 14.6-15V output to maximize transducer performance across varying battery conditions.
Frequently Asked Questions
Additional FAQs are available
How do I set up PingLive Sonar?
Refer to Our Blog for the Full Setup Guide.
What power supply is required?
PingLive Sonar requires 11-18 VDC power input, with typical power usage of 22W and a maximum of 40W. Ensure a stable power source before setup.
What are the available connection options?
- Wired – Uses the Accuphy Brick’s USB-C port plug into your mobile device
- Wireless – Uses the Accuphy WiFi Router for a cable-free experience.
Where can I get support?
Email: support@accuphy.ca
Form: Fill out the contact form from Help & Support
Stay Connected, Stay Mobile
Experience true freedom with our wireless LiveSonar, seamlessly connecting to your iPhone or iPad. With a lightweight, compact design, no black box, and simple yet durable wiring, you can move effortlessly and fish without limits.
Download the iOS App
Features:
- Real-time 240ft fish/terrain imaging
- 3 in 1 sonar imaging: Side scan, Down scan, and Traditional scan
- Over-the-air (OTA) firmware
- Future-proof design for long-term compatibility
