So, you just wired up your PingLive Type-C Brick and are getting ready to connect for the first time. Instead of fumbling around with your user manual, get fishing faster with this helpful step-by-step visual guide.
This guide will walk you through the general connection process, helping you establish a direct and stable communication link between your tablet and the sonar hardware.
First, ensure that your Type-C Brick is properly connected to your power supply, and the transducer cable is plugged into the Brick securely.
Connect the USB-C cable to your Type-C Brick and Tablet, and power on the device.
In your iPad or iPhone Settings application, follow these next steps:

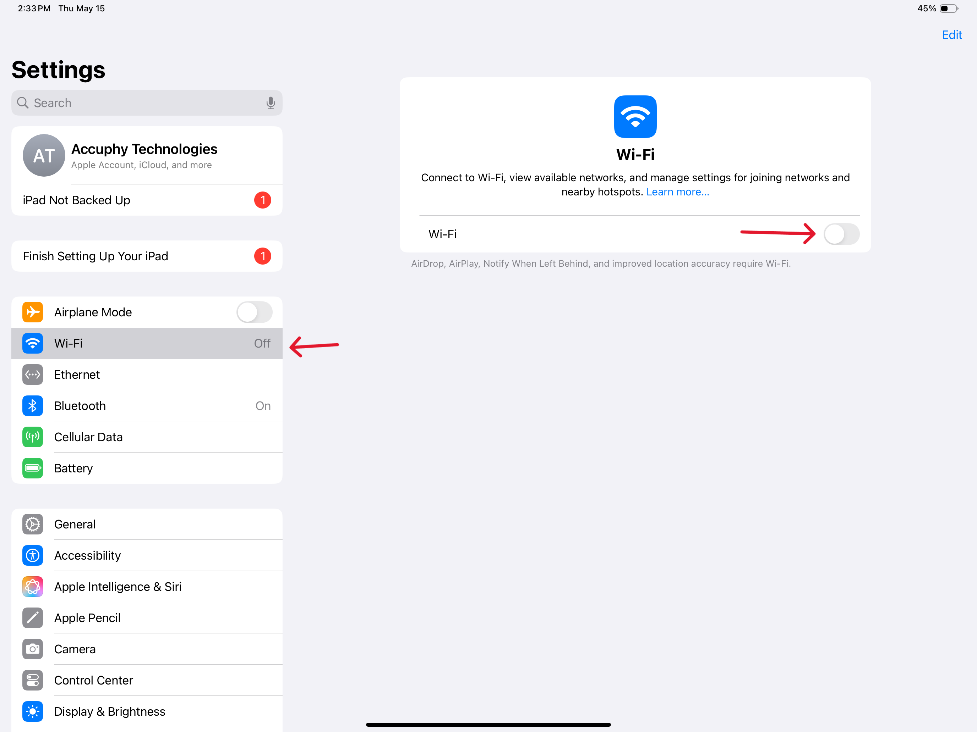

Turn Off WiFi to prevent interference

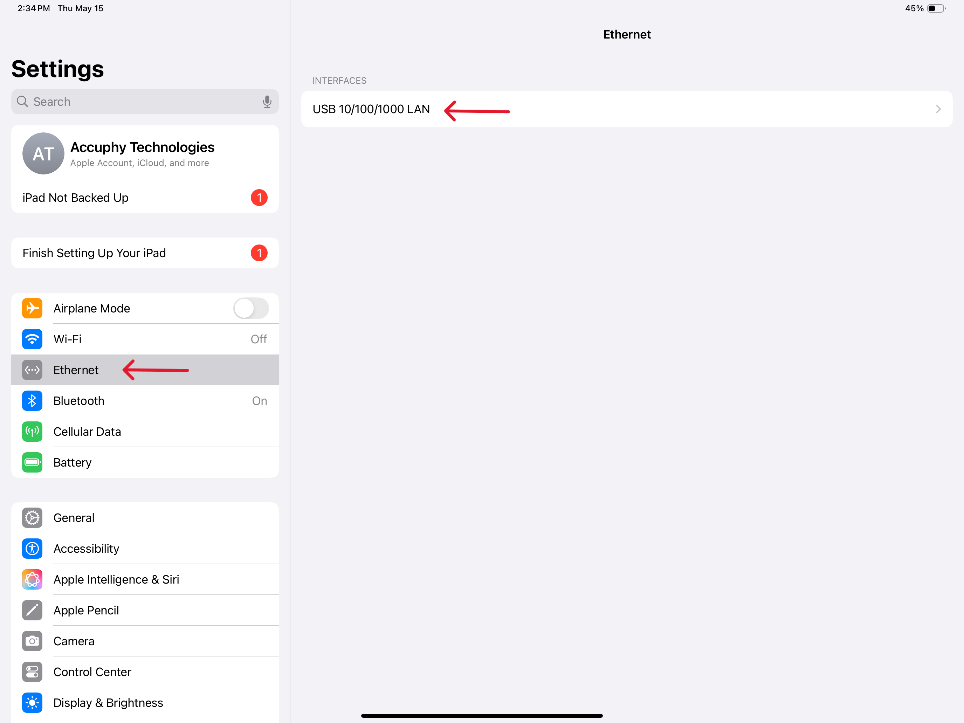

Select Ethernet
Choose 10/100Mbps Ethernet interface

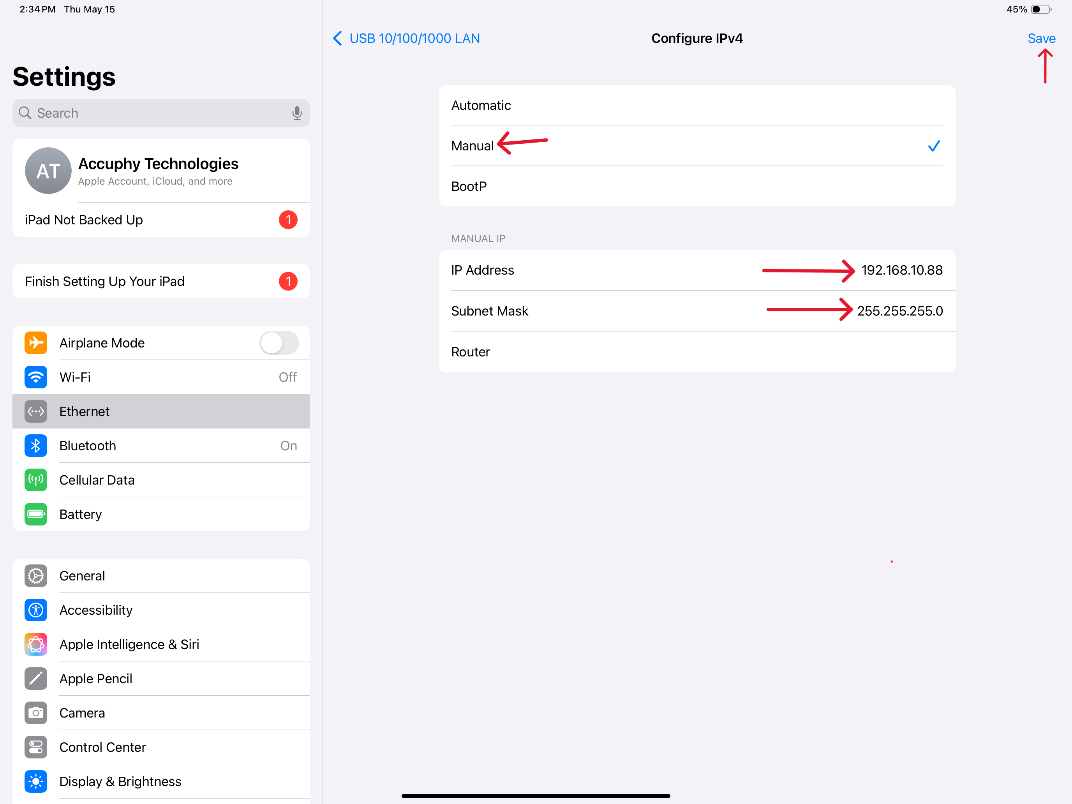

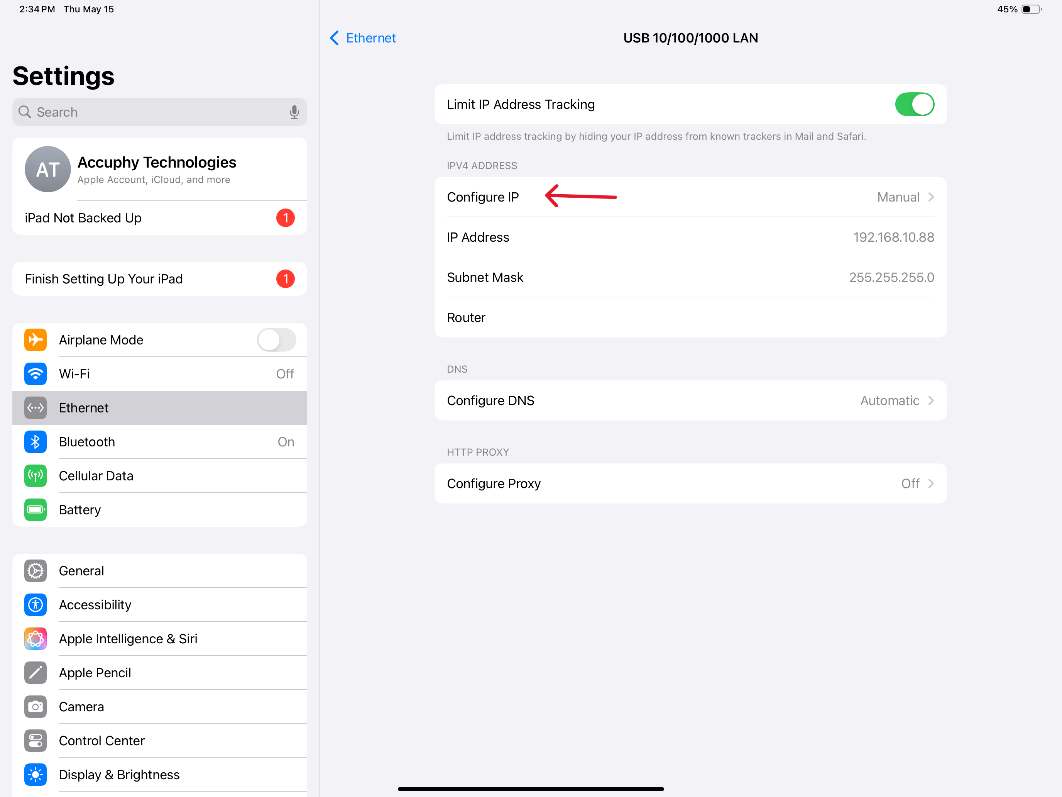

Tap Configure IP and select Manual
Enter the following:
IP Address: 192.168.10.88
Subnet Mask: 255.255.255.0
Save
Open the Accuphy Sonar application and begin using your device!
If you are experiencing any issues, try these troubleshooting tips!
-
Double-check cable connections and power
-
Verify IP settings
-
Restart all devices
Should the issue persist, reach out to us here at support@accuphy.ca for more assistance!
