PingLive Sonar is an innovative wireless LiveSonar system that uses your iPhone or iPad as the display via USB-C or Wi-Fi connection. The transducer unit features an integrated processor, eliminating the need for a separate black box and reducing number of wires by 50% compared to traditional LiveSonar systems. With the included Wi-Fi Router or USB-C Brick, the transducer transmits sonar data to your screen, delivering sharp, real-time underwater visuals with minimal setup.
PLUG & PLAY
View and control live image with iOS & iPadOS devices (iPhone & iPad)
Connect to your iPad or iPhone via WiFi or USB-C, open the APP — it's that easy!
*compatible models can be found in FAQ
Viewing modes
Panoramic View scan large areas to easily spot structures and fish
Down View designed to see the activity beneath your boat with a 135-degreeview or directly beneath an ice hole
Forward View to cover various fishing scenarios
Innovative Design

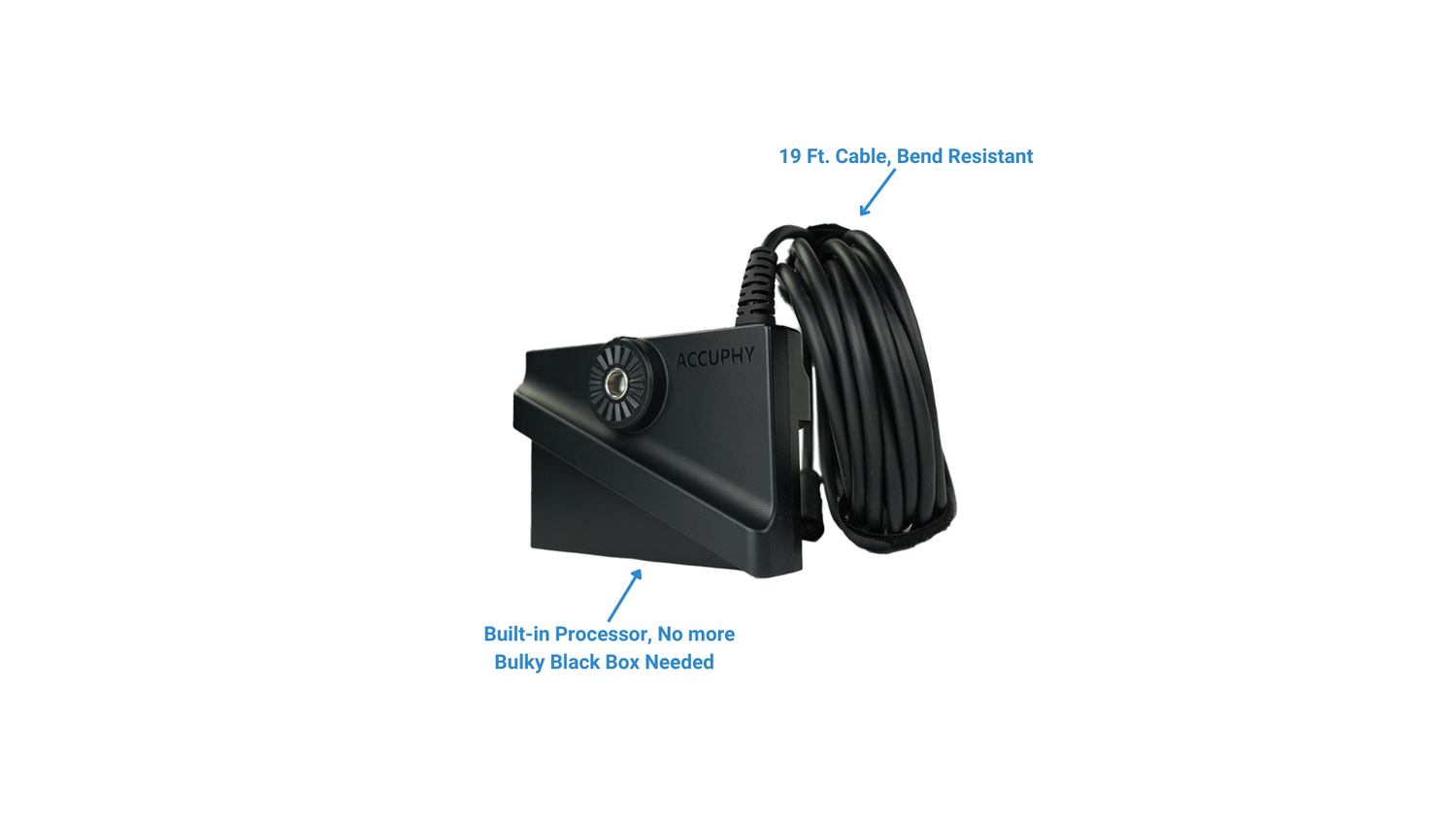

Built-In Processor - No more bulky black box needed! Featuring an integrated processor within the sonar unit.
Reinforced cable - 20FT durable and lightweight sonar cable (260g), built for long-term reliability—perfect for boats, docks, and ice fishing.
Compatible iPad/iPhone Models
Wi-Fi Router Compatibility
Device
Model
Year Released
Port Type
iPad Pro
11-inch, 12.9-inch
2018 and later
Wi-Fi
iPad Air
3rd Gen and later
2019 and later
Wi-Fi
iPad
8th Gen and later
2020 and later
Wi-Fi
iPad Mini
5th Gen and later
2019 and later
Wi-Fi
iPhone
iPhone 11 series and later
2019 and later
Wi-Fi
USB-C Brick Compatibility
Device
Model
Year Released
Port Type
iPad Pro
11-inch, 12.9-inch
2018 and later
USB-C
iPad Air
4th Gen and later
2020 and later
USB-C
iPad
10th Gen and later
2022 and later
USB-C
iPad Mini
6th Gen
2021 and later
USB-C
iPhone
iPhone 15 series
2023 and later
USB-C
Product Specifications

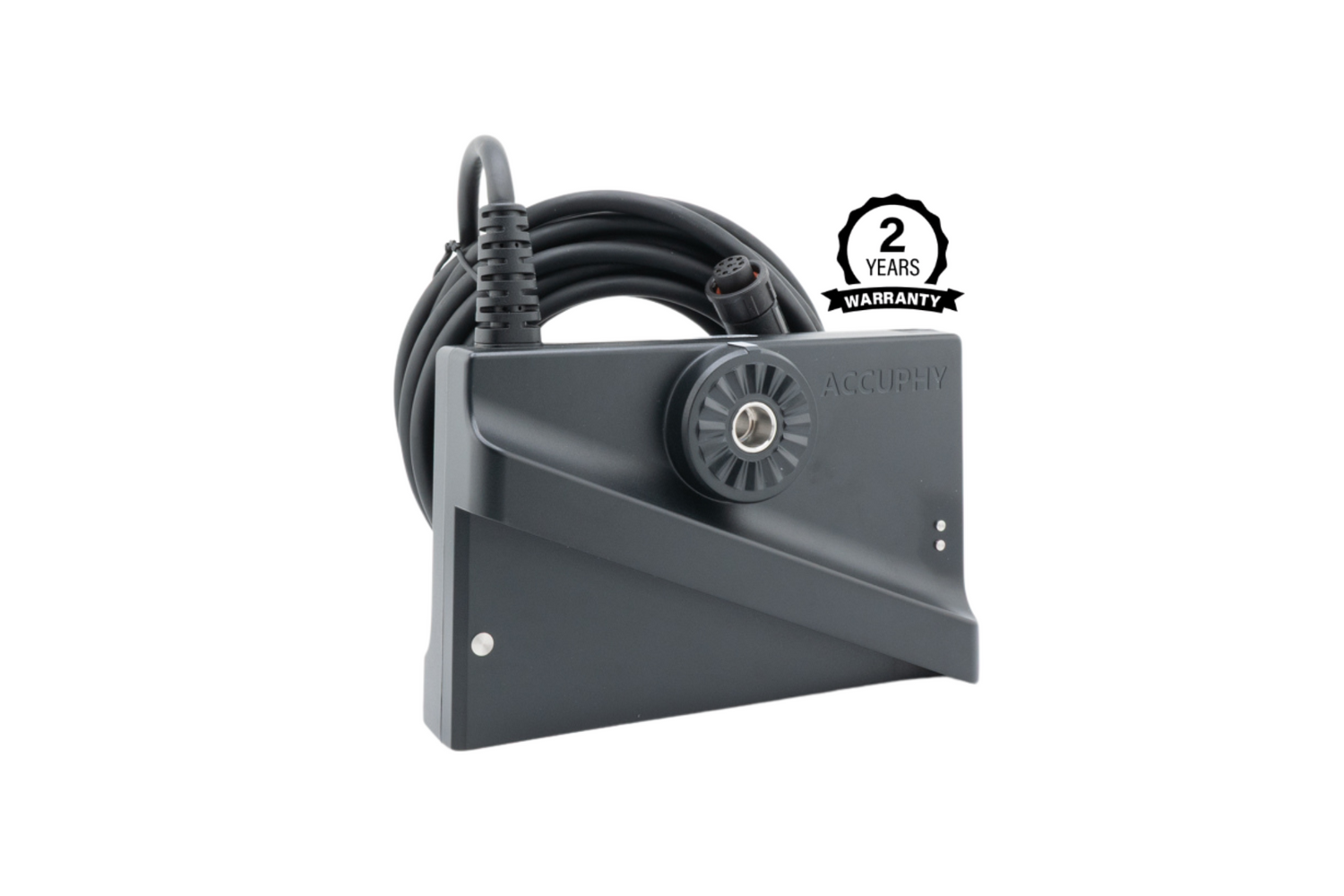

Transducer Specifications
Dimensions: 6.3 x 4.1 x 1.9 in. Weight: 1080g (with cable) Frequencies: 450 - 1,100 kHz Power Usage: 22W typical, 40W max Operating Temperature: 0°C to 40°C Maximum Depth/Distance: 91m (300ft.)
Brick Specifications
Dimensions: 3.35 x 2.95 x 1.38 in Weight: 0.2 kg Temperature Range: -20°C to 40°C Power Input: 11-24 VDC, 6A max Power Regulator: Regulated DC output to sonar unit USB-C Host Interface Ethernet Adapter: Built-in 10/100Mbps Ethernet adapter
Wi-Fi Router One Specifications
Dimensions: 3.35 x 2.95 x 1.38 in Weight: 0.2 kg Temperature Range: -20°C to 40°C Transducer Ports: 1 Power Input: 11-24 VDC Power Usage: 3W typical, 6W max Frequency: 2.4/5.8GHz Wi-Fi Modes: IEEE802.11A/B/G/N/AC Wi-Fi Effective Range: 100 ft*
*A power source capable of supplying at least 6A output is required for optimal performance.
The Router enables wireless connection to your iOS devices with a theoretical range of up to 100ft, providing seamless data transmission.
The Brick includes a USB-C cable for direct screen connection, offering a wired display option.
Both the Router and Brick function as voltage amplifiers and stabilizers, delivering a consistent 14.6-15V output to maximize transducer performance across varying battery conditions.

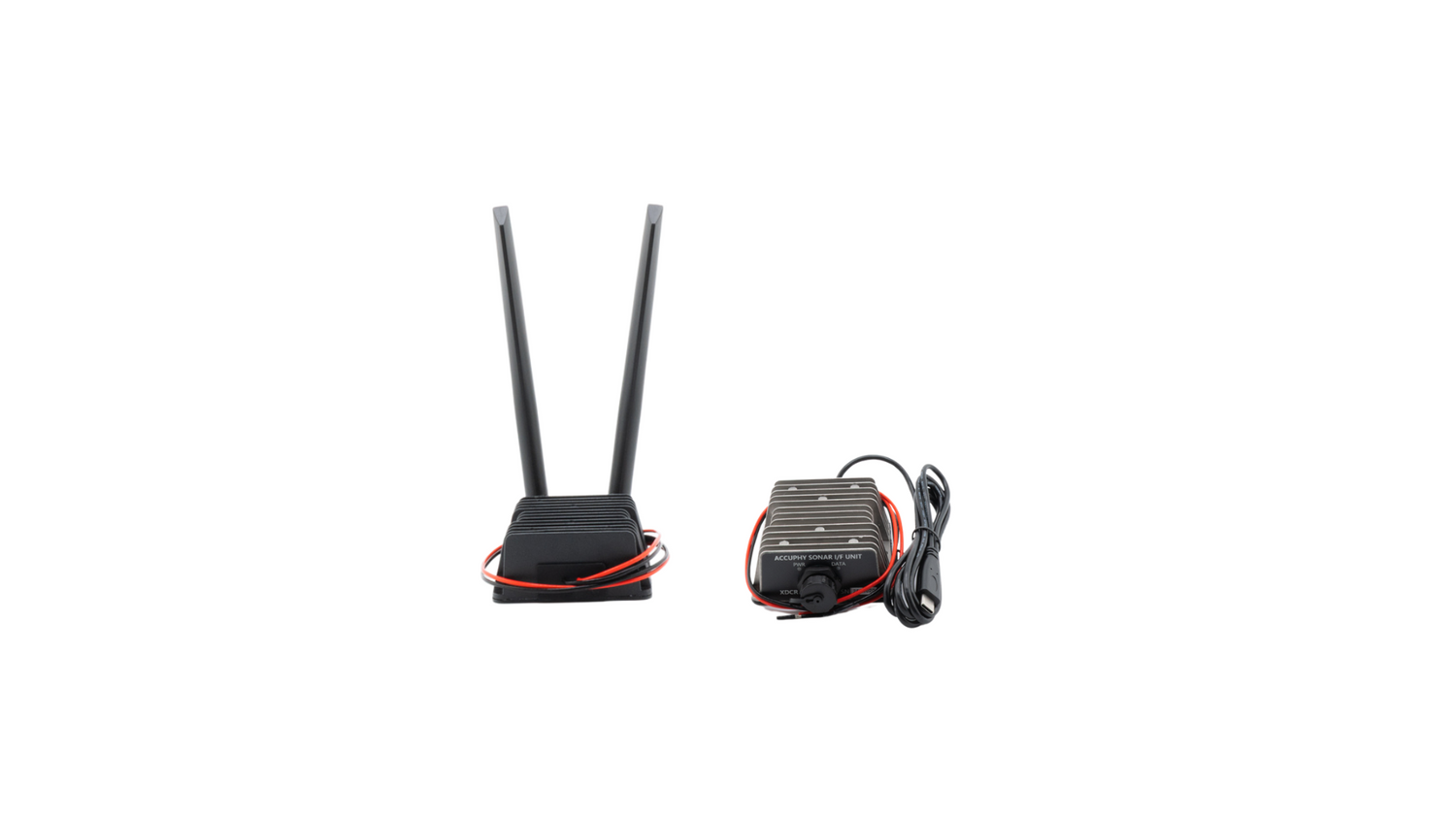

The Wi-Fi Router or USB-C(Brick) serves two key purposes:
Transmits sonar data from the transducer to your screen.
Powers the transducer while acting as a voltage amplifier/stabilizer, supplying a consistent 14.6-15V output to ensure optimal performance—regardless of battery voltage fluctuations
MOUNTING OPTIONS
Shaft Mount
Barrel Mount
Panoramic Mount

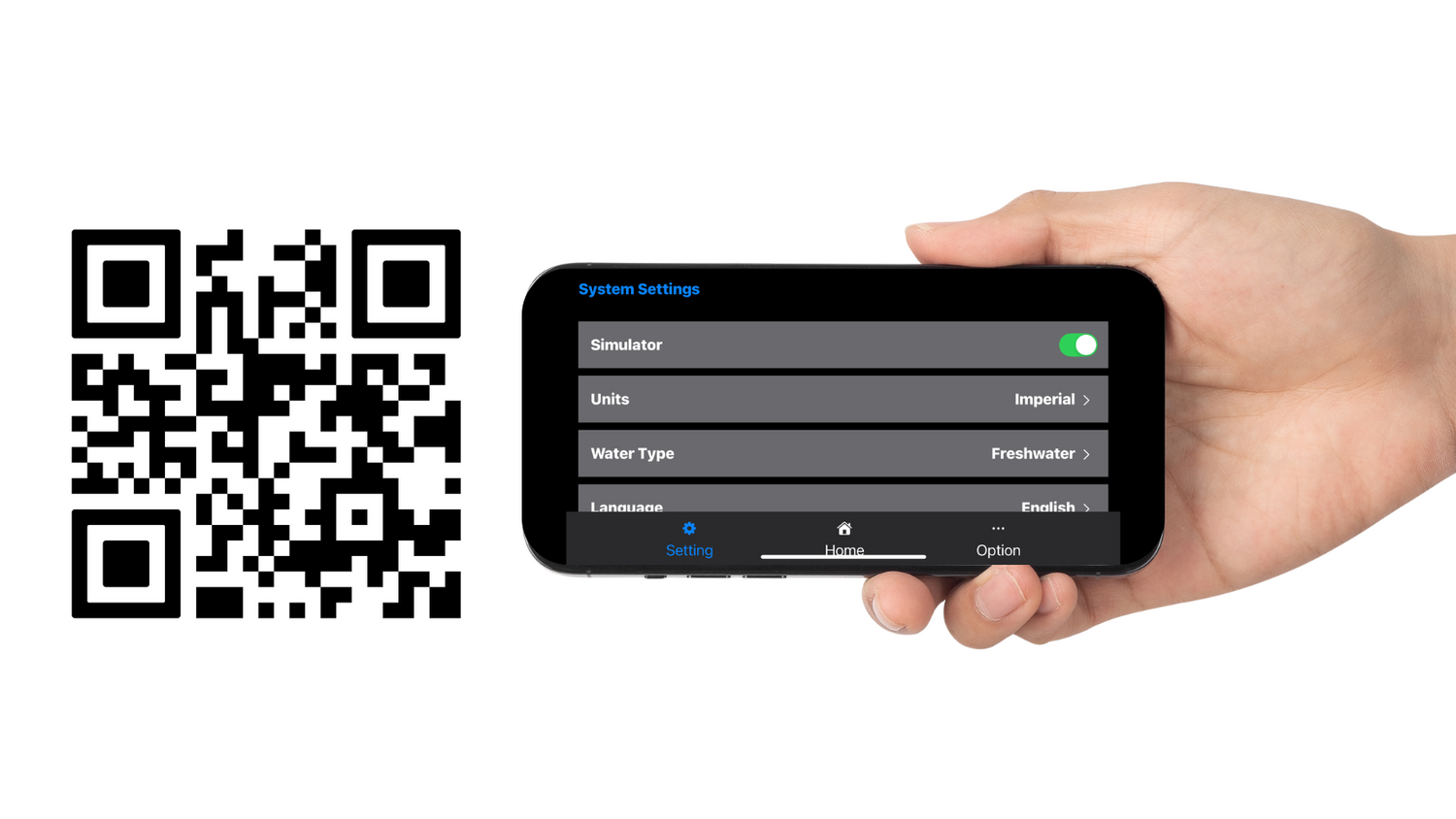

Scan the QR code to Download our app
Try Simulator Mode to see how PingLive helps you find fish.
